Feeding
9 – 36 V
Data transmission interfaces
BLE 5.4
RS-485
RS-485 data transmission protocol
LLS

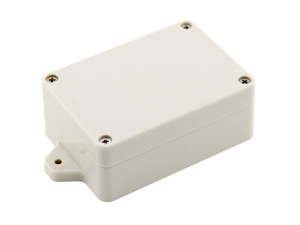

BI BLE Adapter
The BLE Adapter is used to connect BLE fuel level sensors, temperature and humidity sensors to equipment that does not have its own BLE module or does not support the data transfer protocol of the specified sensors. The BLE Adapter receives data from BLE sensors and transmits them via RS-485.
Features
BI BLE Adapter
Key features
The BLE Adapter is used to connect BI FLB Sensor level meters, BI-BLTCIM, BI-BLTCEM temperature sensors, BI-BLTHIM temperature and humidity sensors to equipment that does not have its own BLE module or does not support the data transmission protocol of the specified sensors. The BLE Adapter receives data from BLE sensors and transmits them via RS-485, simulating the operation of conventional wired sensors.
Main features
- Working with Bitrek fuel level, temperature and humidity sensors
- Provides stable communication with sensors and monitoring system
- Easy setup using Android app
Applying
// This model is ideal for
Freight transport
Agricultural machinery
Characteristics
Feeding
9 – 36 V
Typical consumption current (12 V)
10 mA
Maximum number of sensors
4 pcs
Data transmission interfaces
BLE 5.4
RS-485
RS-485
RS-485 data transmission protocol
LLS
Length of connecting cable
5 m
Operating temperature
from -30 °C to +80 °C
Relative humidity
5 - 95% non-condensing
Overall dimensions
50 х 40 х 16 mm
Enclosure protection class
IP44
Net weight
75 g
Protocols and Integration (For Developers)
-
Supported data transfer interfacesBLE 5.4, RS-485
-
ConfigurationBLE
-
Full compatibility withdevices with RS-485 interface
// FAQ
Questions and answers
How is the BLE Adapter configured?
The device is configured using an Android application that can be downloaded via the Play Market.
Does the BLE Adapter work with sensors from other manufacturers?
The reader supports sensors manufactured by Bitrek. Other manufacturers are not supported.
