Key features

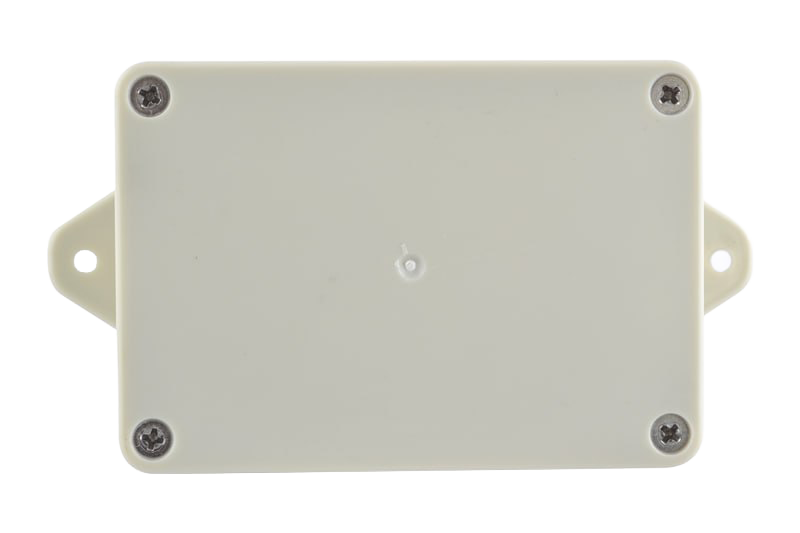

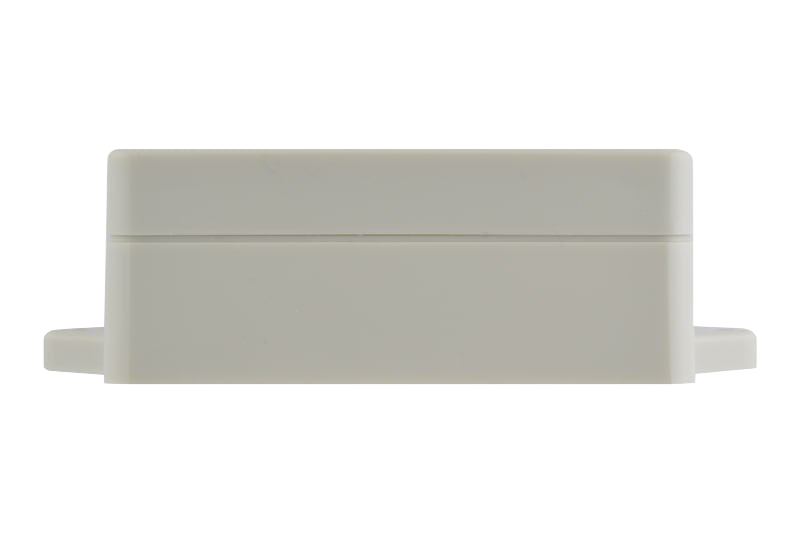

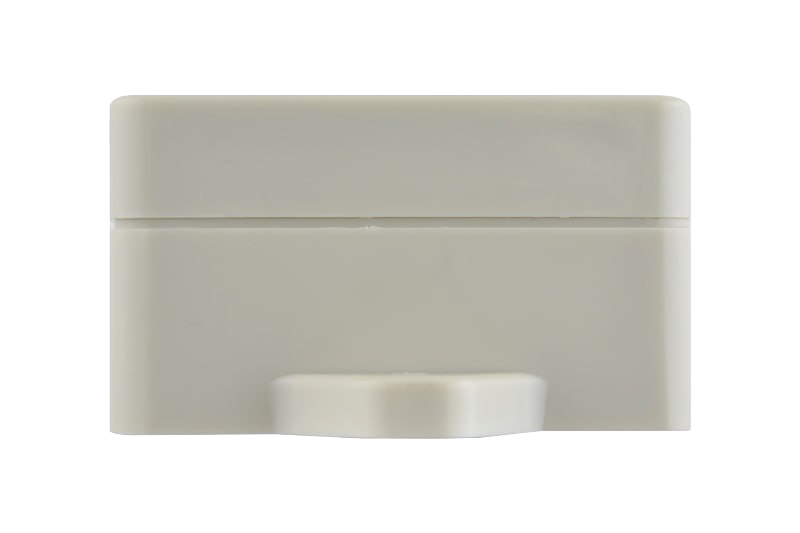

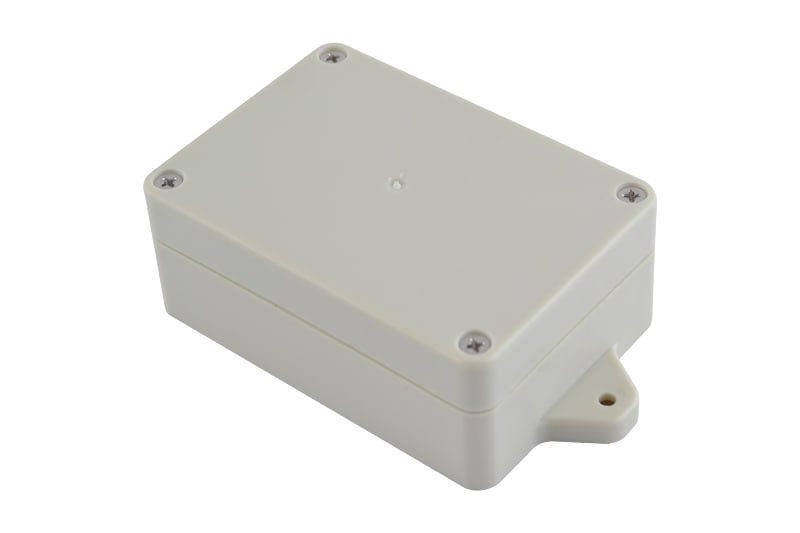

The BLE tag is an autonomous wireless sensor (beacon) that works with the BL module of the Bitrek Connect system and is designed for automatic recognition of trailer and mounted equipment on commercial, freight vehicles and agricultural machinery. It is used in the “Own-Alien” grain unloading control system.
Main features
- Autonomous power supply
- Works as part of the “Friend-Alien” system
- Moisture-proof housing
- Easy installation
Applying
// This model is ideal for
Commercial and freight transport
Agricultural machinery
Truck identification on weighing terminals
Characteristics
Working distance between tag and reader
15 m
Battery life
up to 3 years old
Power source
built-in battery CR18505
Battery voltage
3 V
Battery capacity
2400 mAh
Digital interfaces
BLE 4.0
Operating temperature
from -30 °C to +80 °C
Relative humidity
5–95% non-condensing
Enclosure protection class
IP65
Overall dimensions
108 х 58 х 33 mm
Net weight
110 g
Protocols and Integration (For Developers)
-
Supported data transfer protocolsBLE 4.0
-
ConfigurationUART
-
Full compatibility with BL moduleBitrek Connect systems
// FAQ
Questions and answers
Is it possible to replace the tag battery myself?
Yes, the label provides for the possibility of easy battery replacement.
Is one label enough to identify the unloading?
If the truck body is long, it is better to use two marks.
How is the label configured?
The tag is configured using a special USB – UART programmer for BLE tags.
