Key features

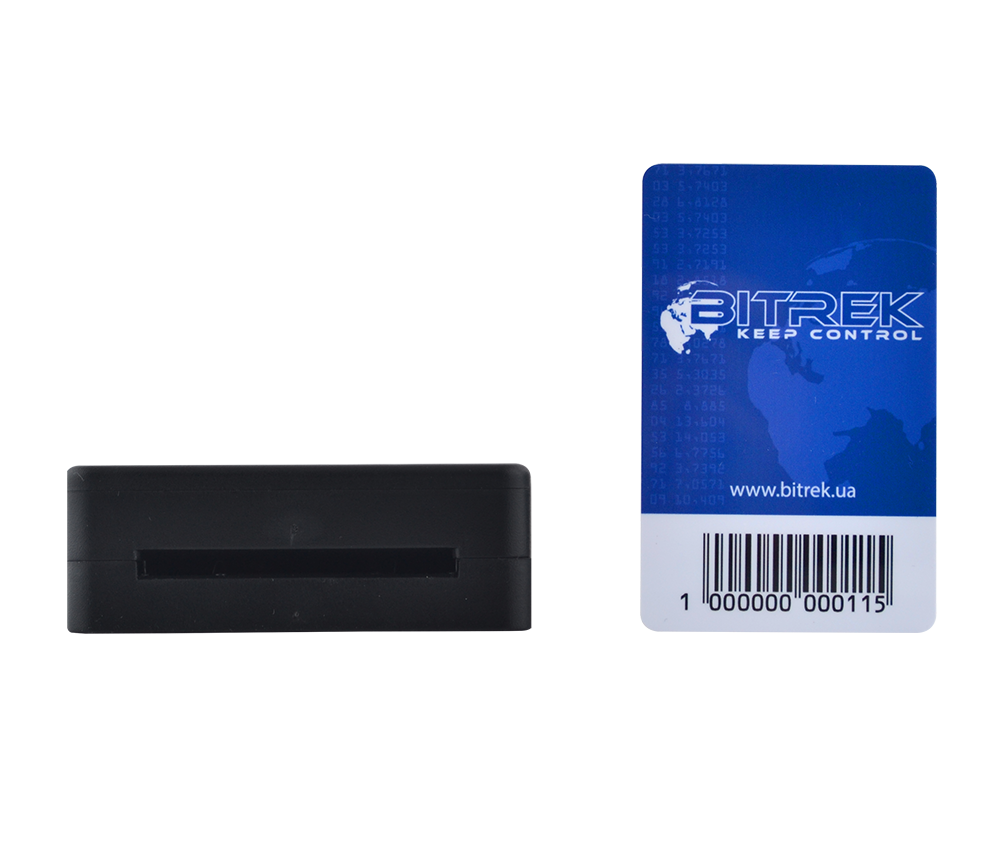

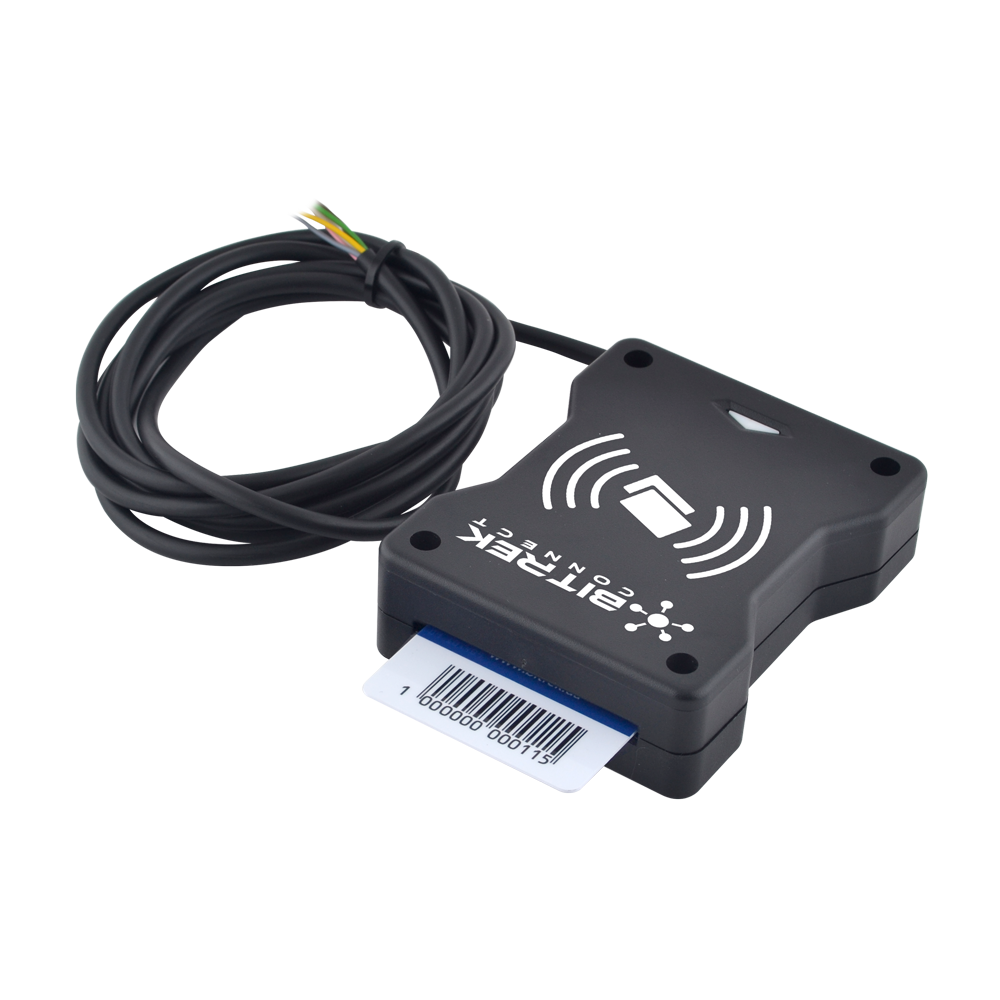

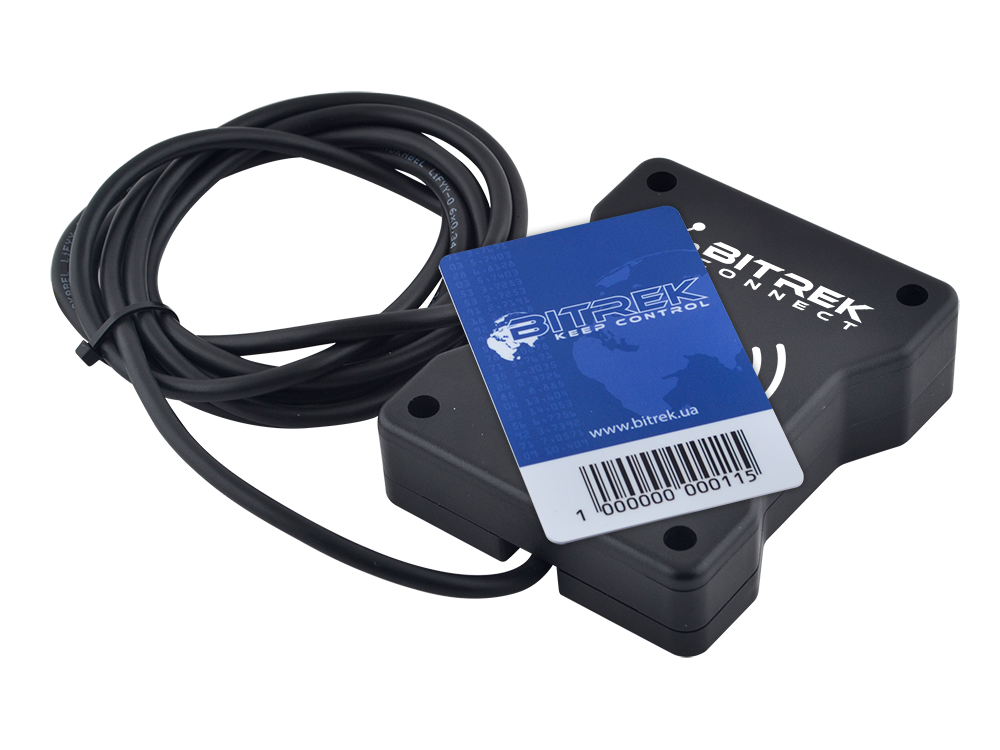

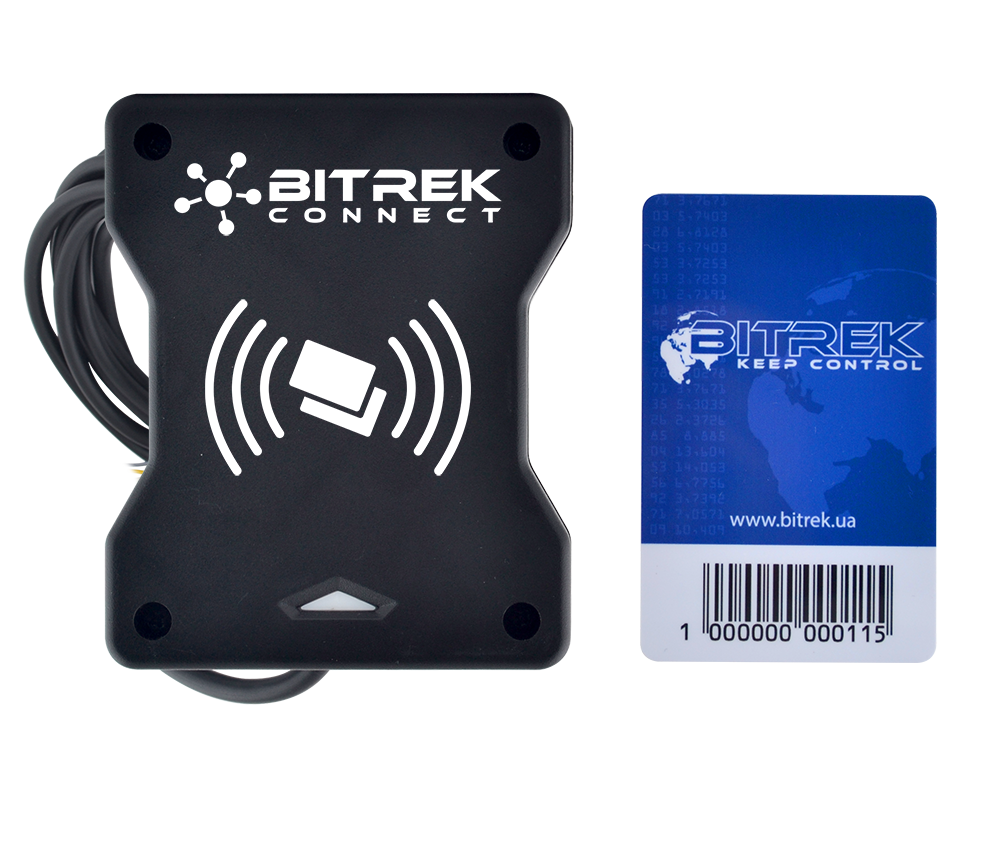

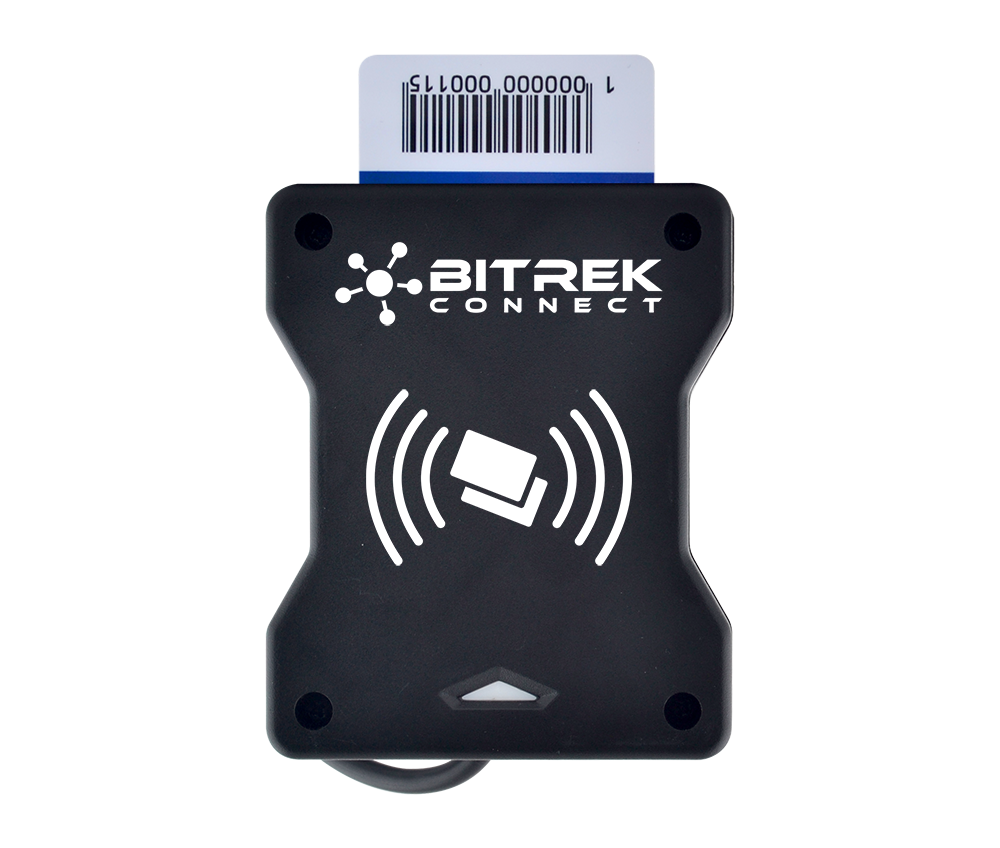

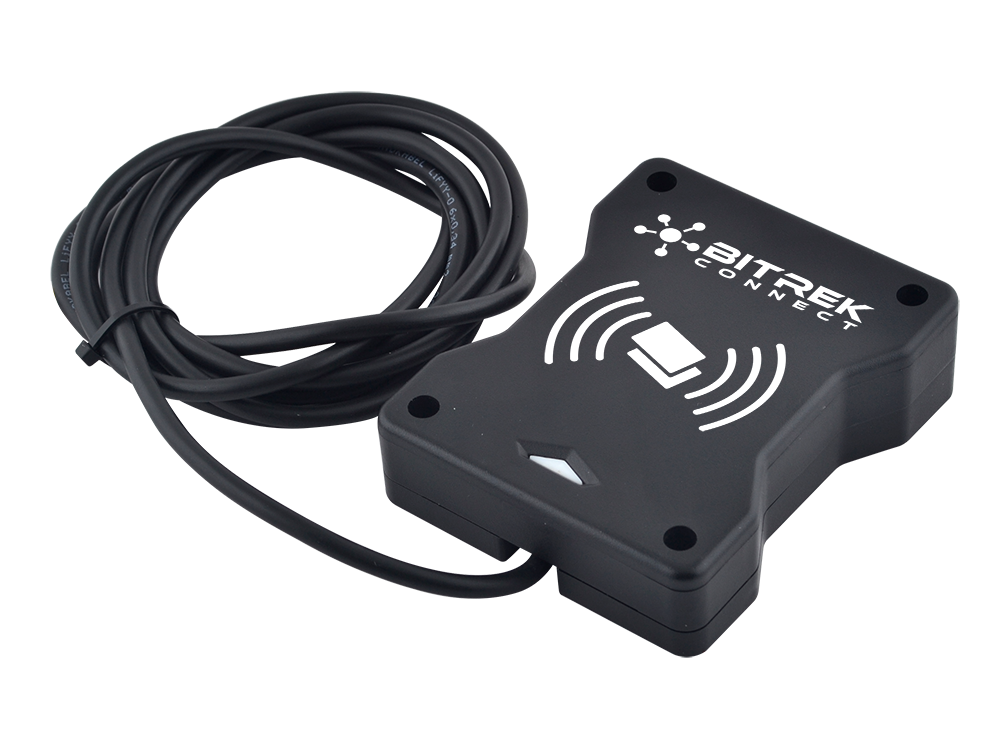

The MF module is a specialized RFID Mifare card reader with a waterproof housing, compatible with the Bitrek Connect system and trackers with an RS-485 interface. It is used for driver identification, access control and time and attendance systems. Compatible with the “Friend-Neighbor” system.
Main features
- Built-in memory
- Works as part of the “Friend-alien” system
- Moisture-proof housing
- Controlled output
Applying
// This model is ideal for
Construction and special equipment
Fuel stations and stationary gas stations
Combine harvester and tractor
Driver identification on any vehicle
Characteristics
Supported card standards
Mifare Classic 1K
Maximum number of cards stored in memory
1 million
Power supply type and voltage
constant, 9 - 36 V
Average current consumption (12 V)
30 mA
Operating frequency
13.56 MHz
Digital interfaces
CAN (Connect-Bus)
RS-485
RS-485
Operating temperature
from -30 ° C to +80 ° C
Relative humidity
5 - 95% non-condensing
Enclosure protection class
IP67
Overall dimensions
85 х 105 х 30 mm
Маса нетто
300 g
Protocols and Integration (For Developers)
-
Supported data transfer protocolsCAN (Connect-Bus), RS-485 (SOVA)
-
ConfigurationCAN
-
Full system compatibilityBitrek Connect та mNVR
// FAQ
Questions and answers
How are cards remotely recorded into the module?
Cards are recorded using GPRS commands from the main or backup server. Cards can be added or deleted.
Can the device work in encrypted mode with Mifare cards?
Can the device work in encrypted mode with Mifare cards?
Is it possible to remotely configure the module?
Yes, it is possible – using GPRS commands from the main or service server.
