Feeding
9 - 36 V
Interfaces
CAN (Connect-Bus)
RS-485
Key features

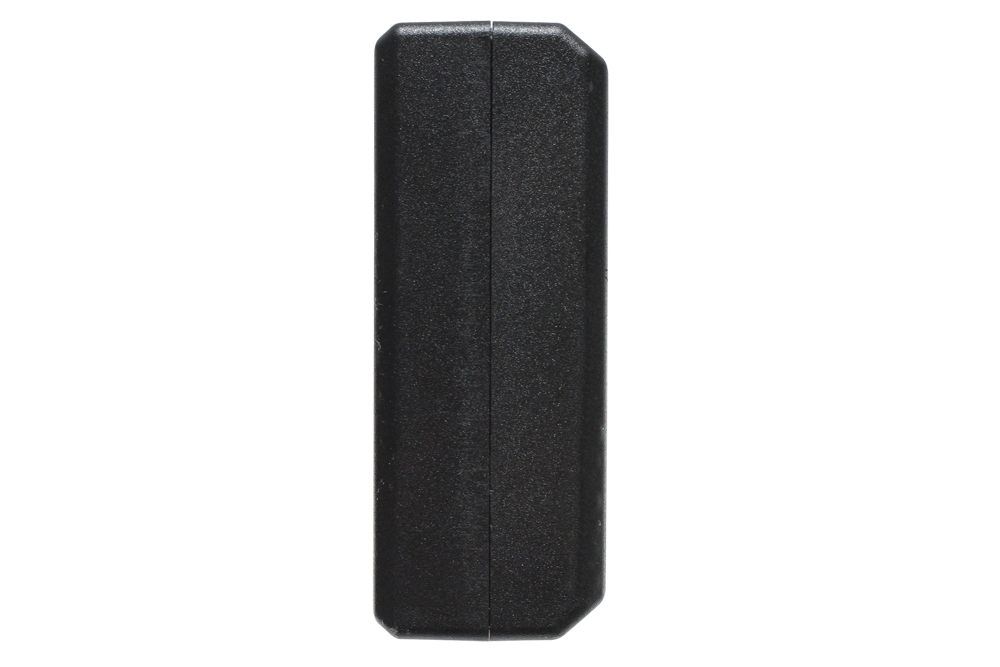

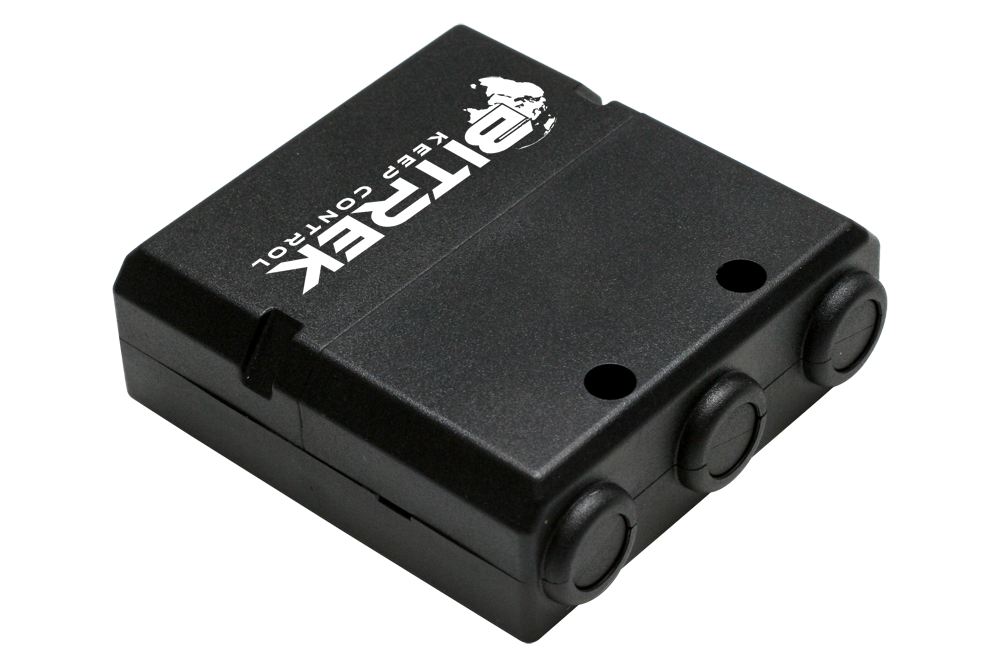

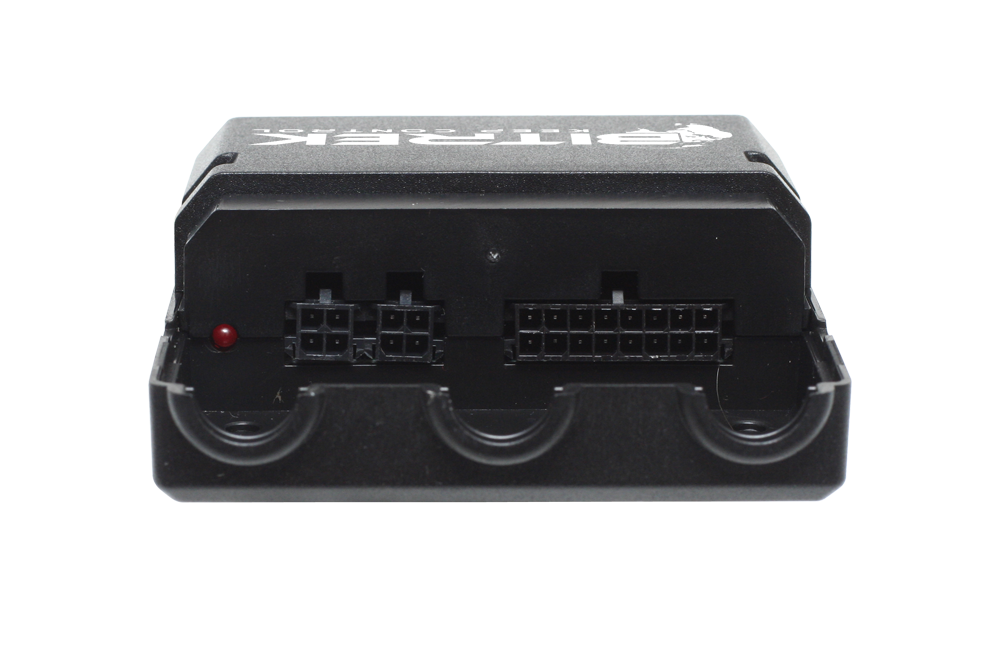

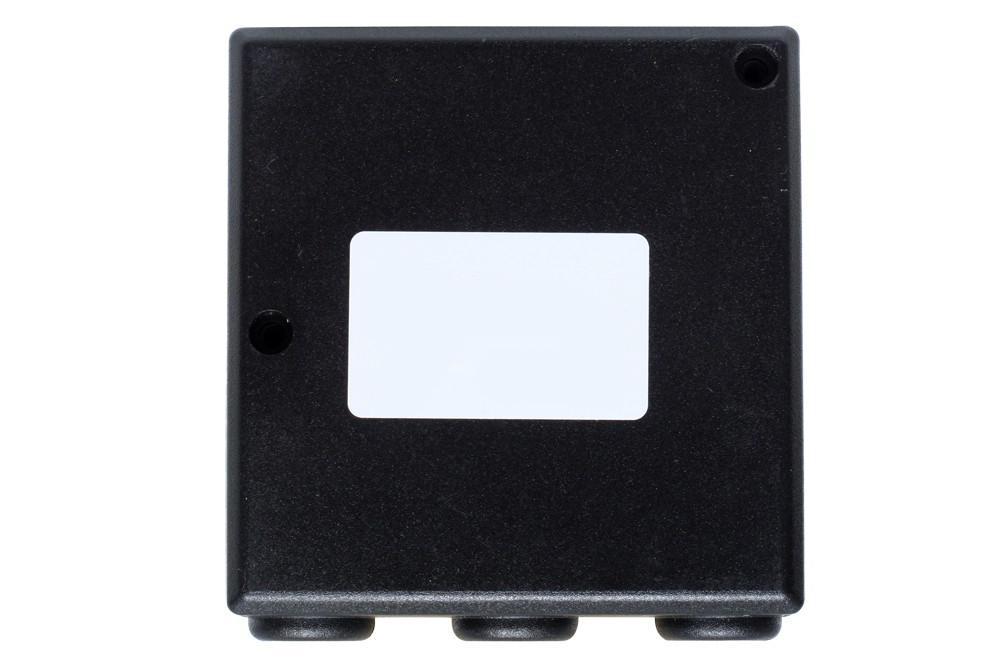

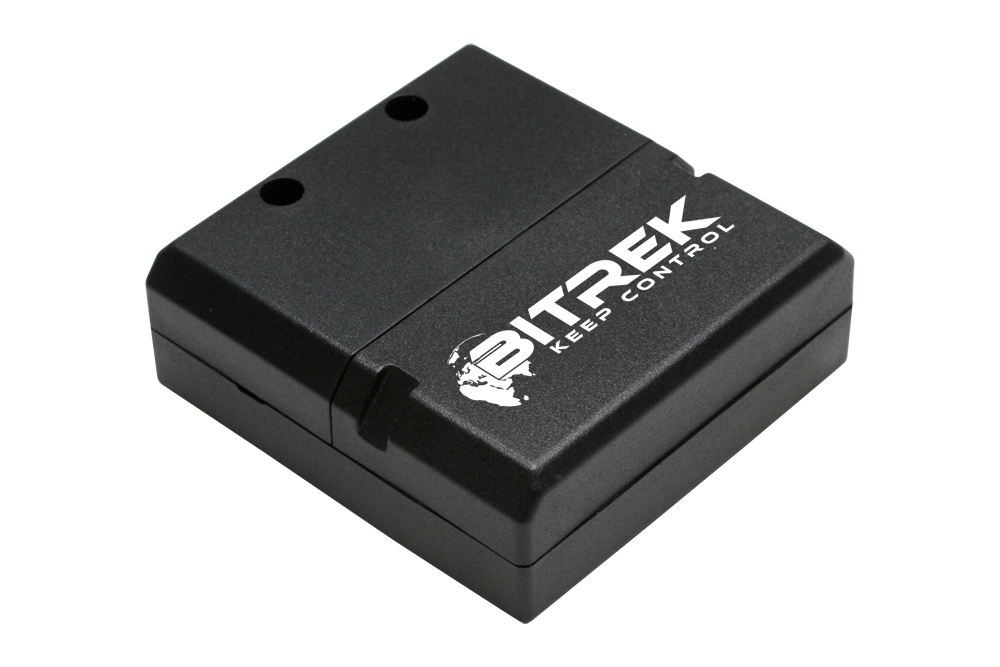

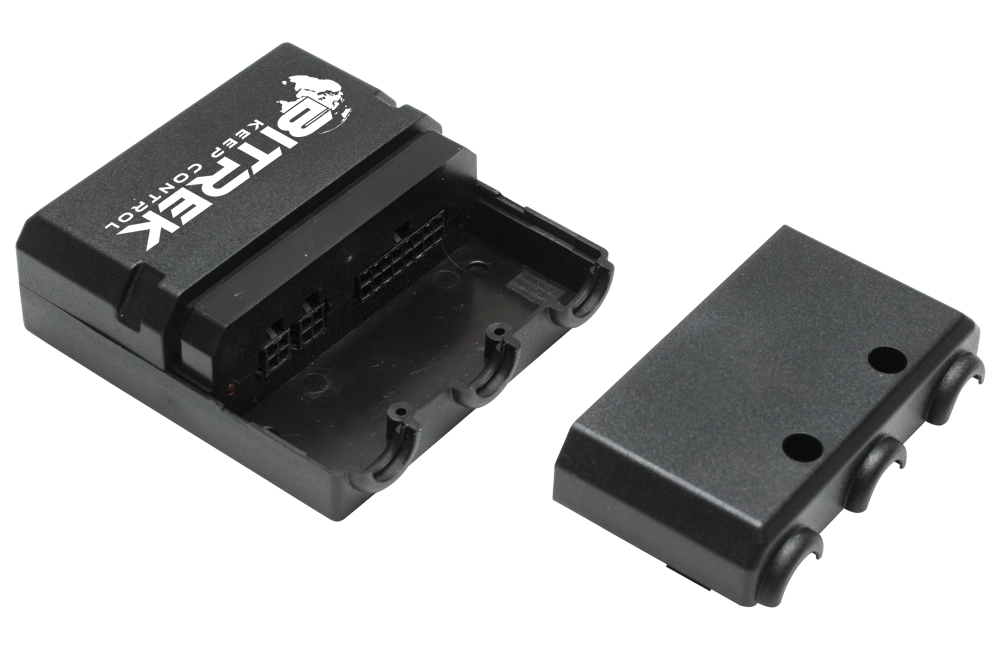

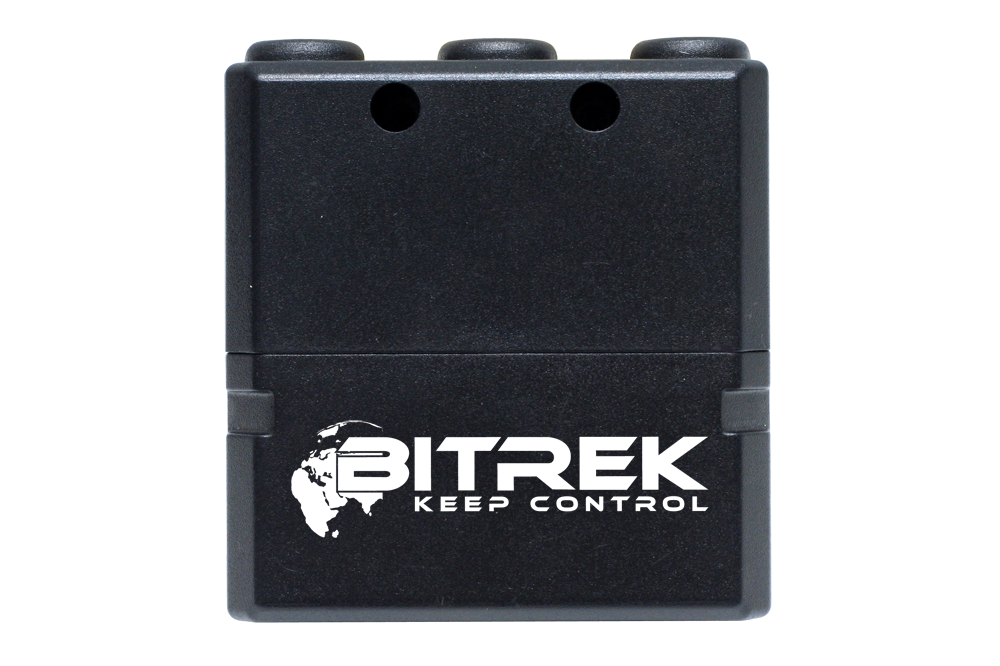

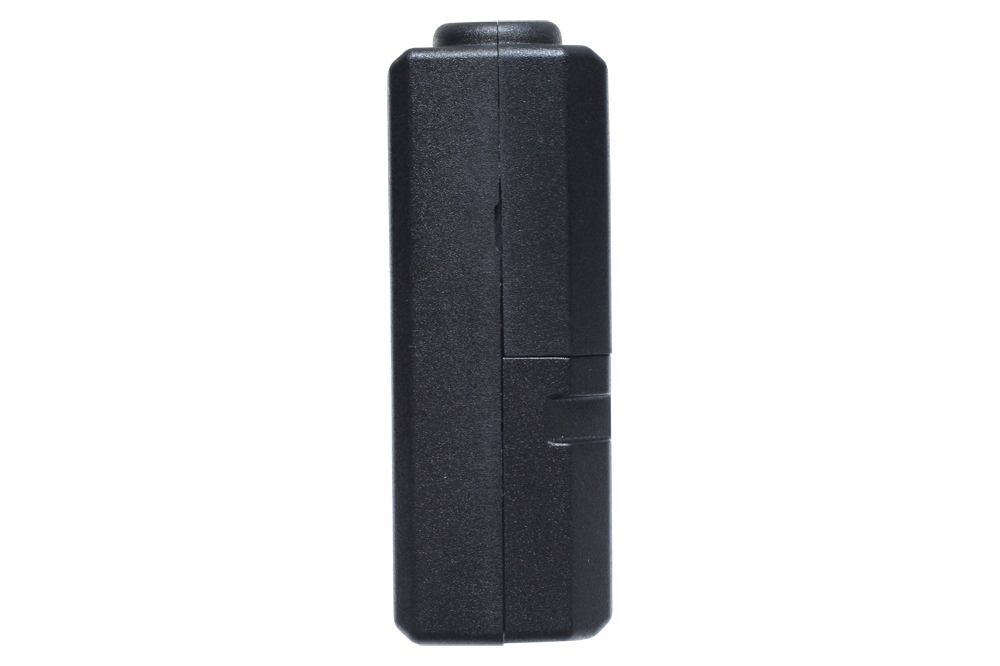

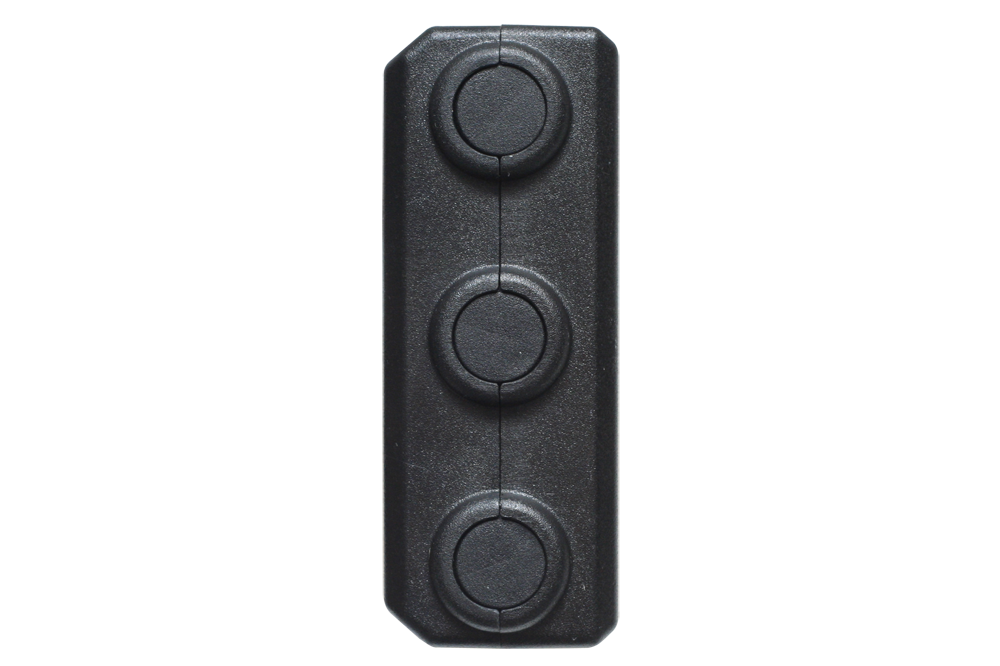

The RF module is a separate module of the Bitrek Connect system, in the standard version it is designed to work with RFID readers, has a memory for 4000 cards and is used in the “Friend-Stranger” system. Depending on the version of the firmware, it can work with various devices that support the RS-485 interface.
Main features
- Support for RFID readers via RS-485
- Works as part of the “Friend-Stranger” system
- Has integration with magnetostrictive DRPs, gas station controllers
- Has Modbus RTU support
Applying
// This model is ideal for
Combine and hopper-loader
Fuel stations and stationary gas stations
Magnetostrictive DRP
Devices that support Modbus RTU
Characteristics
Maximum number of RFID readers
4 pcs
Maximum number of cards stored in memory
4000
Power supply type and voltage
constant, 9 - 36 V
Average current consumption (12 V)
20 mA
Digital interfaces:
CAN (Connect-Bus)
RS-485
RS-485
Operating temperature
from -30 ° C to +80 ° C
Relative humidity
5 - 95% non-condensing
Enclosure protection class
IP44
Overall dimensions
78 х 83 х 30 mm
Net weight
80 g
Protocols and Integration (For Developers)
-
Supported data transfer protocolsCAN (Connect-Bus), RS-485
-
ConfigurationCAN
-
Full system compatibilityBitrek Connect and mNVR
// FAQ
Questions and answers
How are cards remotely recorded into the module?
Cards are recorded using GPRS commands from the main or backup server. Cards can be added or deleted.
Is it possible to change the module's firmware yourself to connect other devices to it?
The module can be updated by the user, but if a firmware change is required to change the type of connected equipment, then the firmware and module preparation takes place in the service center. When ordering a new module, we recommend that you specify the type of equipment that is planned to be used.
Is it possible to remotely configure the module?
Yes, it is possible – using GPRS commands from the main or service server.
