Key features

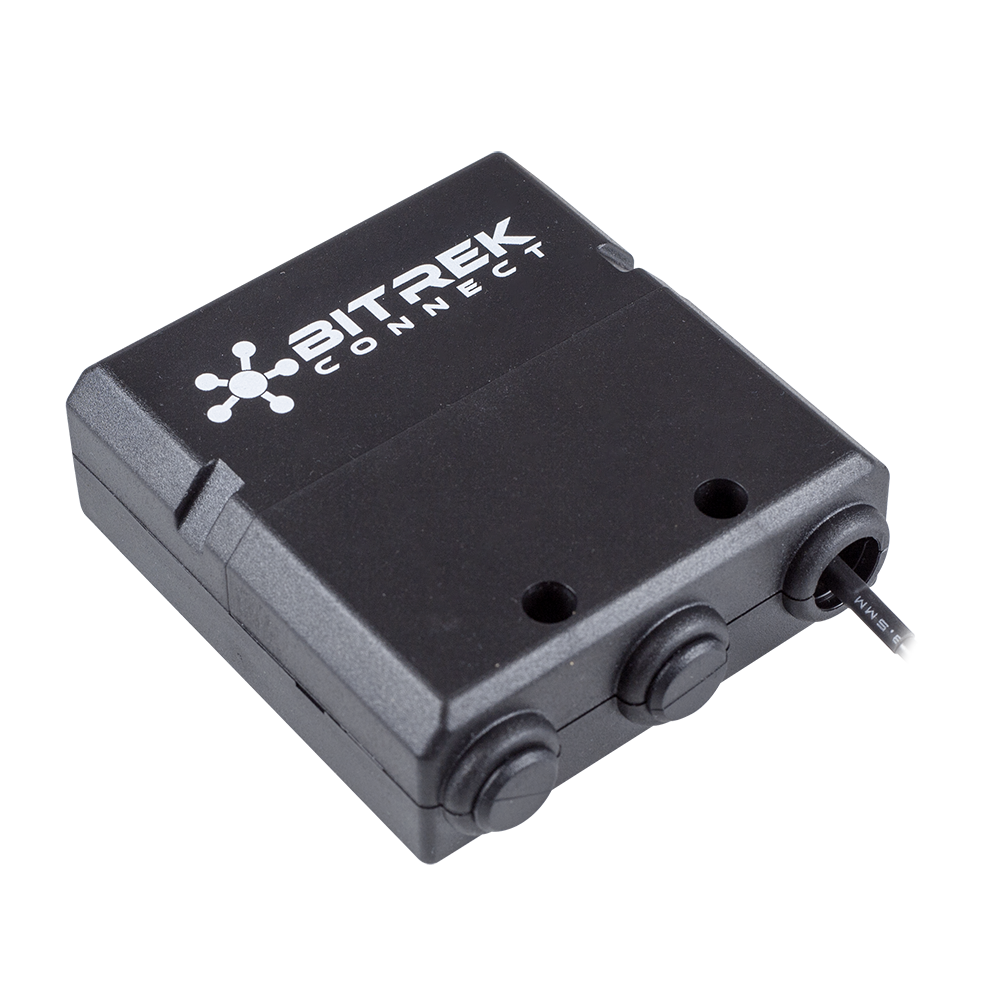

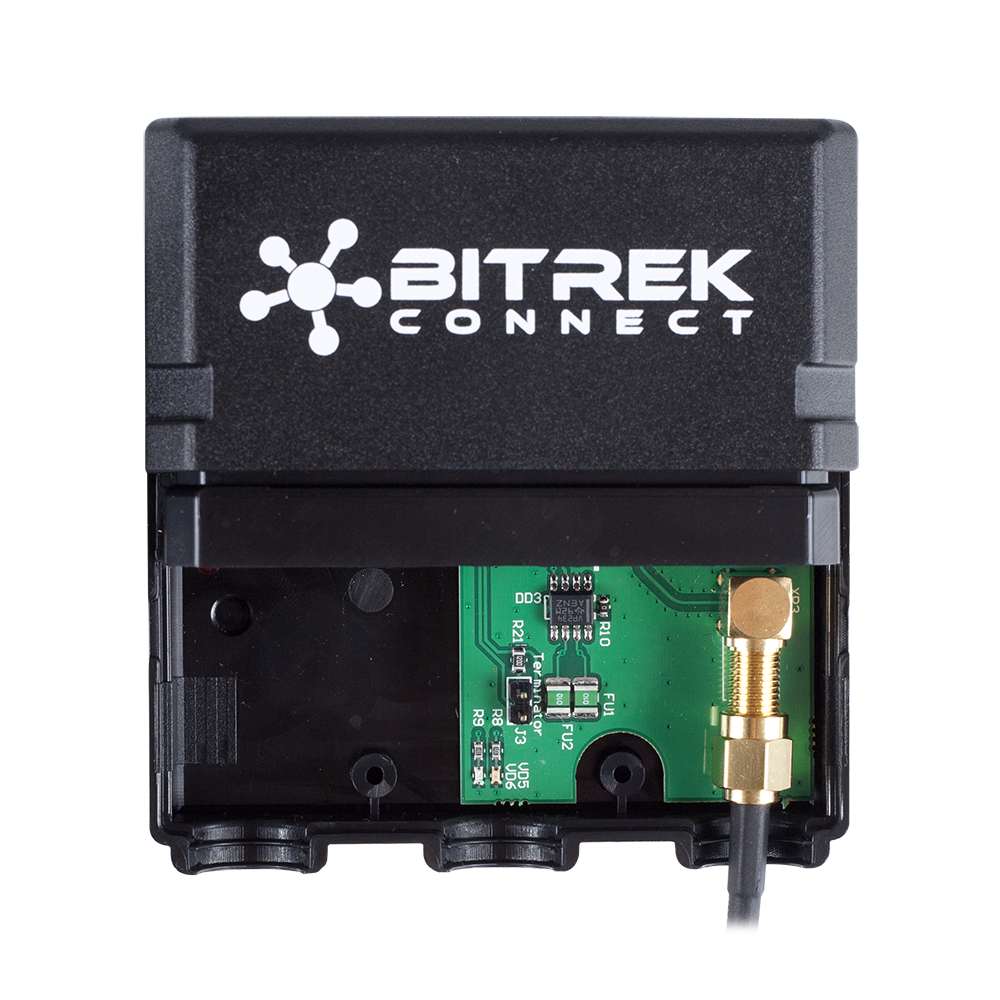

The UX module is a separate module of the Bitrek Connect system, designed to obtain coordinates with an accuracy of up to 1 cm. The module is based on a differential dual-frequency GNSS module with support for RTK corrections.
Main features
- High accuracy of the received coordinates
- Ability to connect to RTK stations
- Easy installation
Applying
// This model is ideal for
Combine harvesters of various models
Tractors and trailed equipment
Special equipment
Characteristics
Supported navigation systems and frequency ranges
GPS (L1C/A , L2C)
GLONASS (L1OF, L2OF)
BEIDOU (B1L, B2L)
Galileo (E1-B/C, E5b)
GLONASS (L1OF, L2OF)
BEIDOU (B1L, B2L)
Galileo (E1-B/C, E5b)
Fix time (for all navigation systems)
cold start - 24 s, hot start - 2 s
Accuracy of coordinate determination
0.5 - 1.5 m in offline mode, 1 cm + 1 ppm SCR with differential correction
Accuracy of coordinate determination
tracking: -167 dBm
hot start: -157 dBm
cold start: -148 dBm
hot start: -157 dBm
cold start: -148 dBm

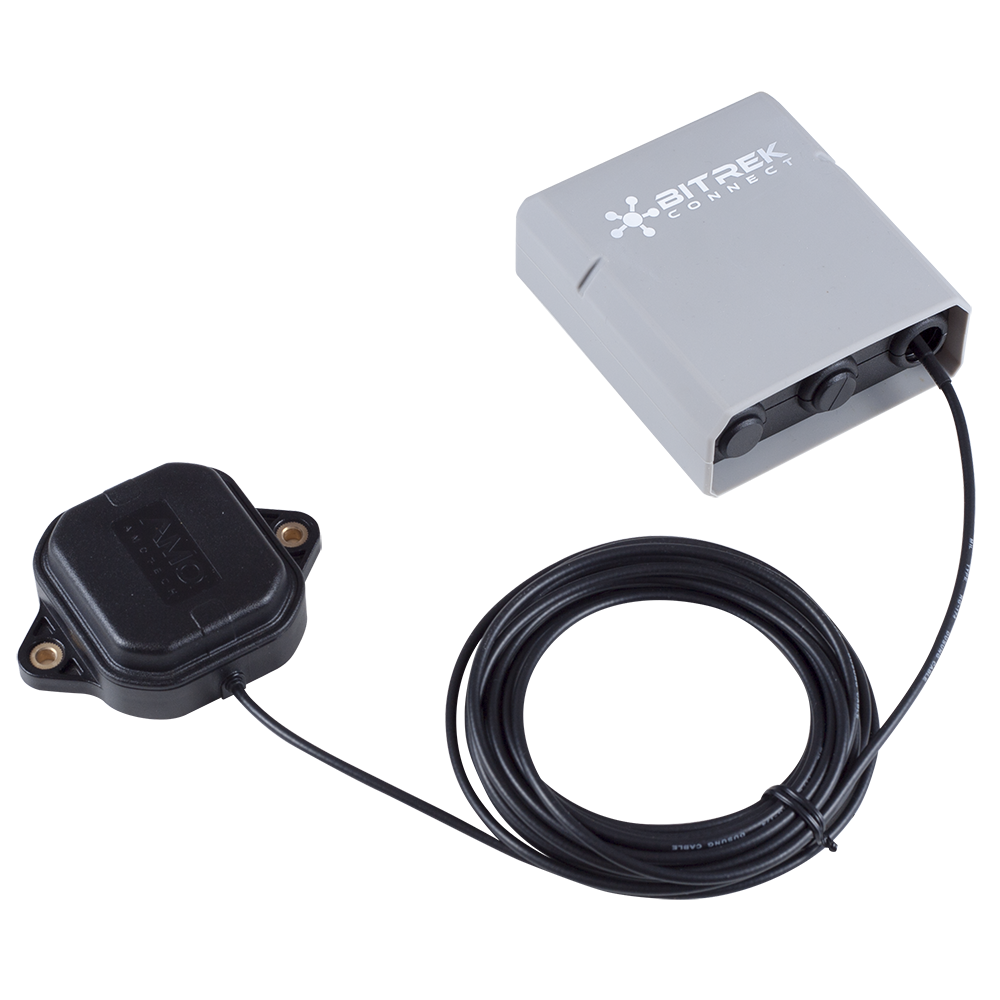

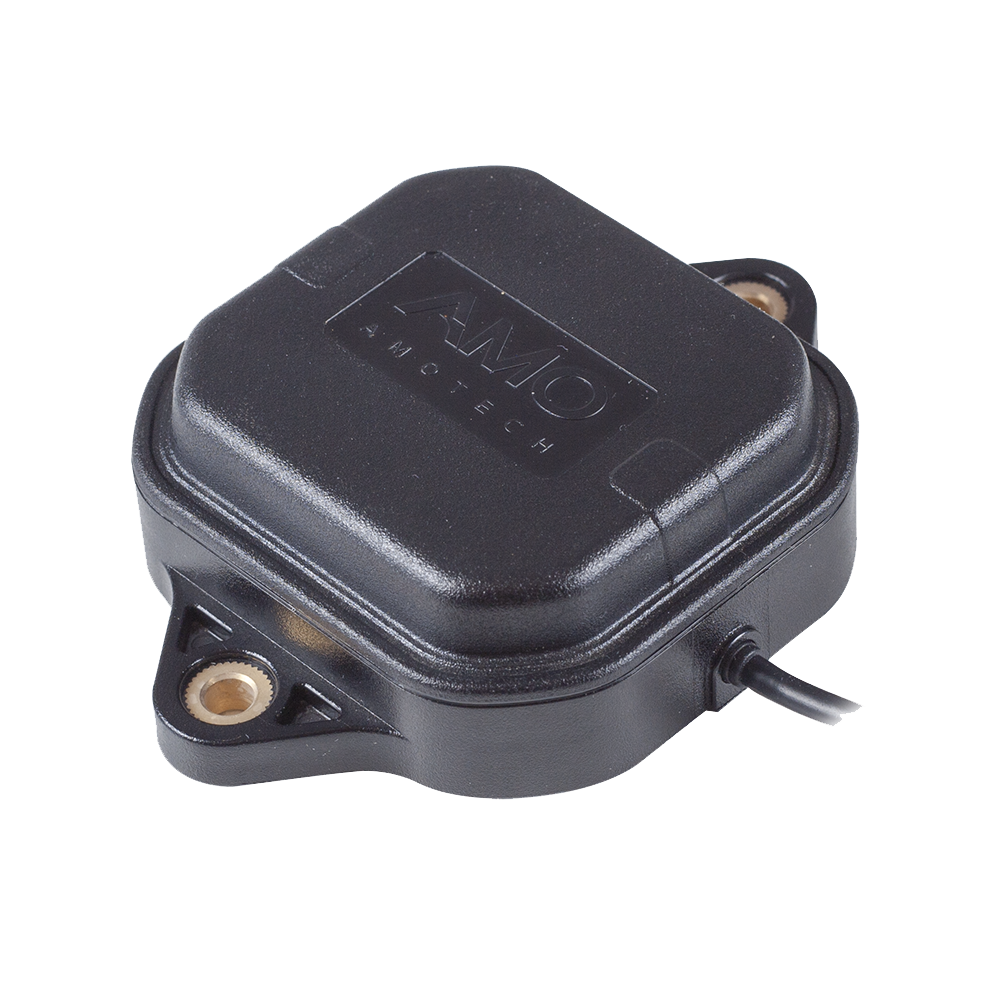

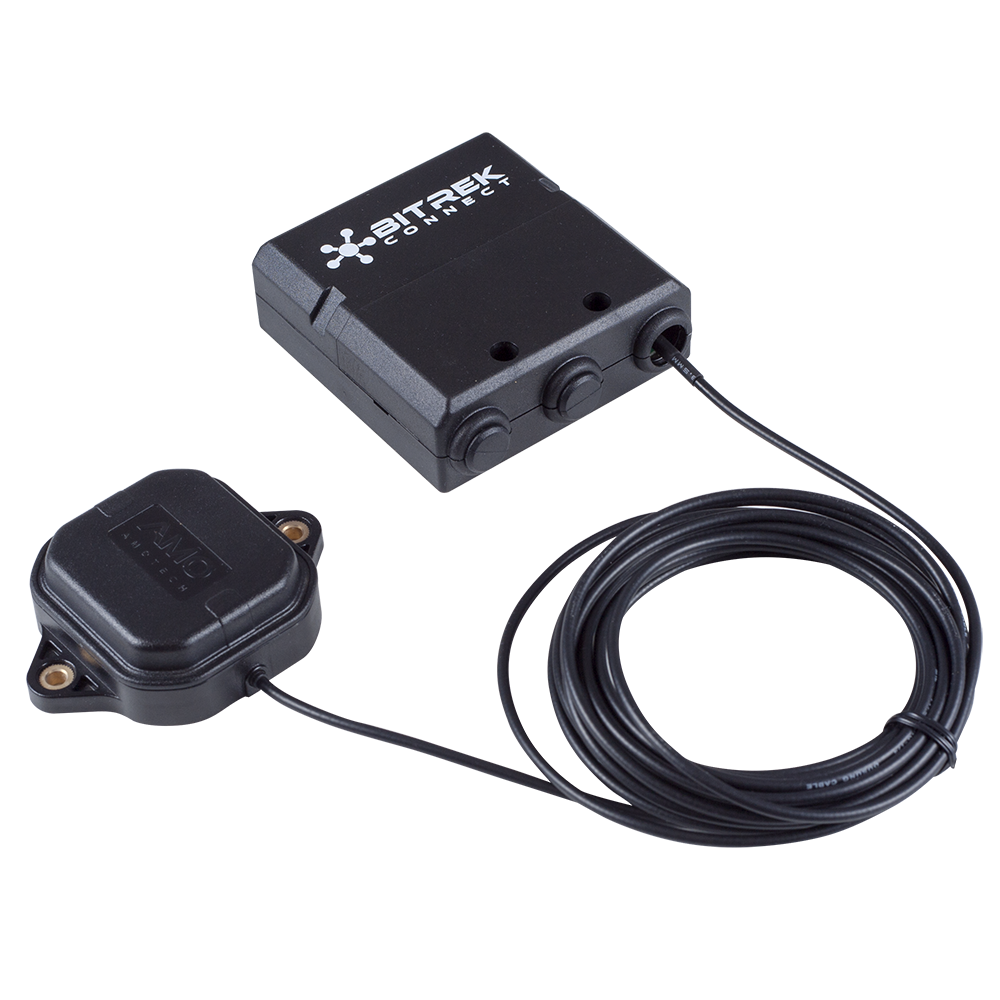

GPS antenna type
remote dual-band active antenna
Power supply type and voltage
constant, 9 - 36 V
Average current consumption (12 V)
50 mA
Digital interfaces
CAN (Connect-Bus)
Operating temperature
from -30 °C to +80 °C
Відносна вологість повітря
5 - 95% non-condensing
Enclosure protection class
IP44
Overall dimensions
78 х 83 х 30 mm
Net weight (set)
270 g
Protocols and Integration (For Developers)
-
Supported data transfer protocolsCAN (Connect-Bus)
-
ConfigurationCAN
-
Full system compatibilityBitrek Connect та mNVR
// FAQ
Questions and answers
Which RTK stations are supported?
The module allows you to receive corrections from any RTK stations via special servers.
What accuracy can be obtained without using RTK?
Without using RTK corrections, the average accuracy is 1 m.
Is it possible to configure the module remotely?
Yes, it is possible – using GPRS commands from the main or service server.
