Power supply 9 - 36 V Battery 130 mAh Interfaces 1-wire RS485 2x Analog In 2x Digital In 2x Digital Out BLE 4.0 GNSS GPS GLONASS Galileo SBAS

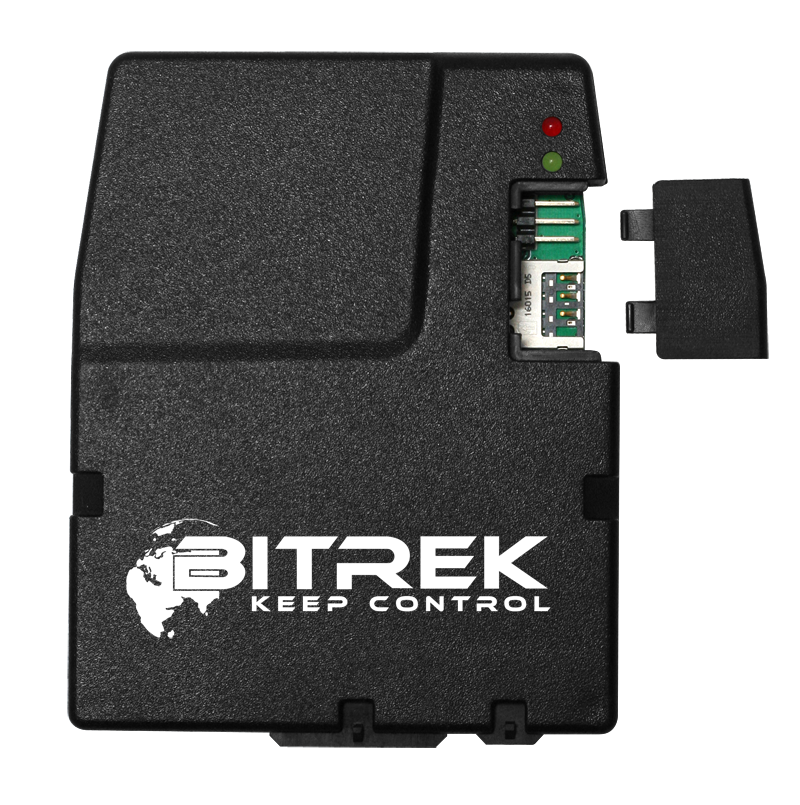

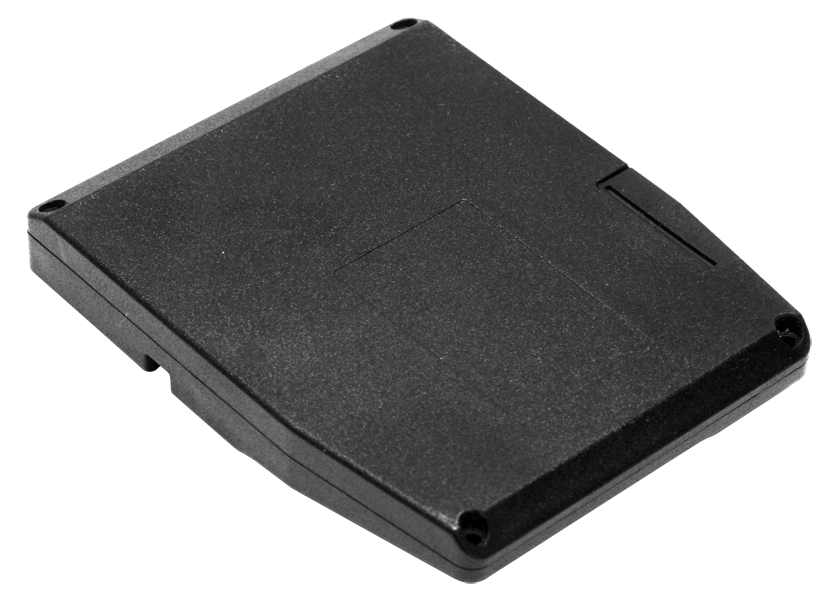

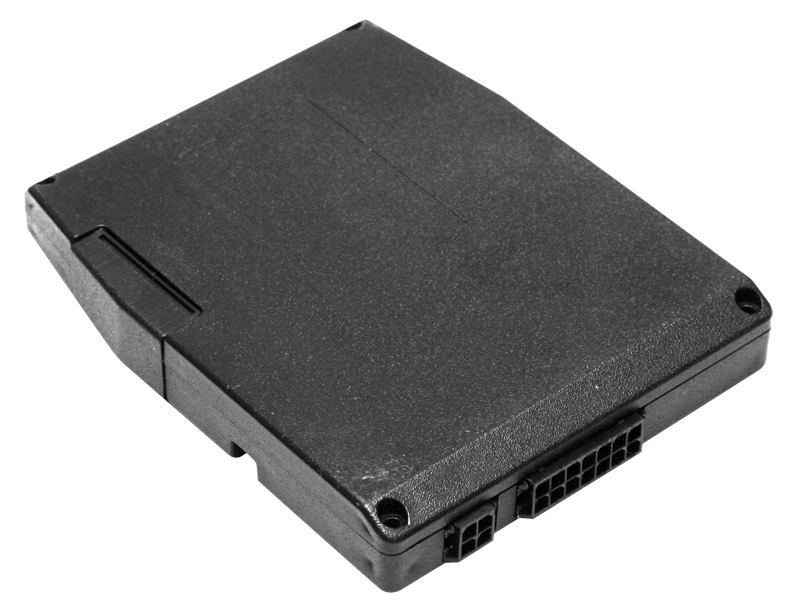

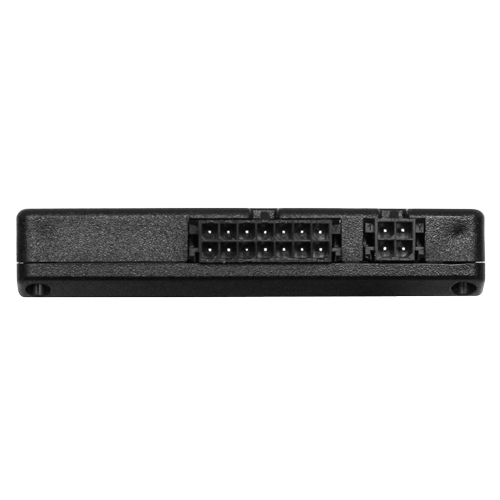

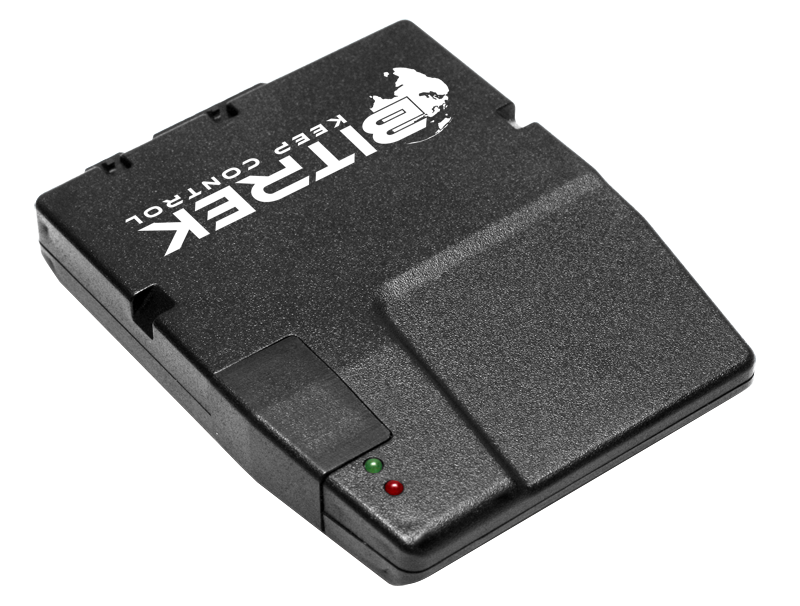

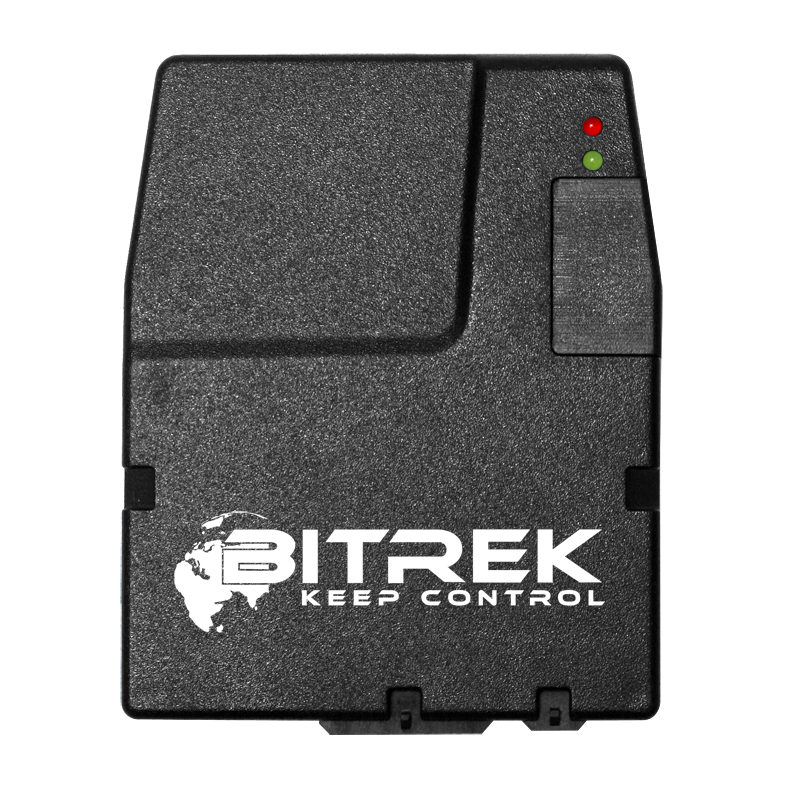

BI 530 R TREK v3

Reliable GPS tracker for vehicle monitoring, which provides fuel control, works with pulse flow meters, allows you to connect a large number of additional sensors. An ideal solution for logistics, fleets, monitoring of fuel tankers and special equipment.

Partners Request a consultation

Features

RS-485 (RFID support, fuel level sensors)

1-Wire (iButton, temperature sensors)

BLE 4.0

Built-in antennas

BI 530 R TREK v3

Opportunities Characteristics Protocols and Documents Cases FAQ Associated goods

Key features

BI 530 R TREK v3 is a reliable tracker for precise fuel monitoring and control. The device is created for projects where the main focus is on accurate fuel control, work with pulse flowmeters, 1-Wire sensors and the ability to connect additional BLE sensors.

Main features

High accuracy of determining coordinates and mileage
Connection of fuel level sensors via RS-485
Connection of various sensors via BLE
Connection of pulse flow meters
Working with 1-Wire (iButton, temperature sensors)
ECO driving control (sharp acceleration, braking)
“Black box” mode with backup memory

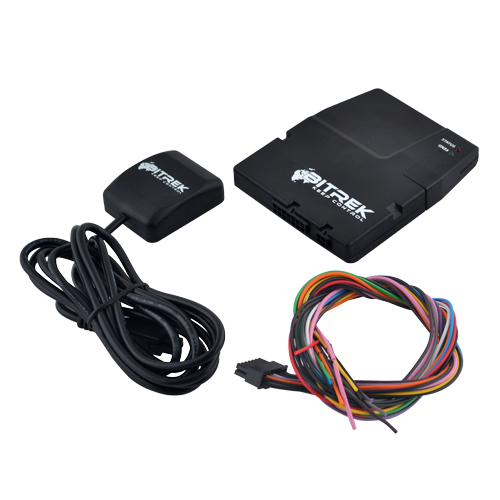

Ability to connect an external GPS antenna (MicroFit)
FOTA — firmware update and change settings online (including CAN and BLE scanning)

Applying // This model is ideal for

Логістичних компаній та вантажних перевезень

Fuel control in a large fleet

Construction and special equipment

Характеристики

Transmission standard: GSM 850/900/1800/1900 MHz

GSM frequency ranges and power - GSM850, EGSM900: up to 2 W
- DCS1800, PCS1900: up to 1 W

Automatic range selection GPRS class – 12

Navigation system type GPS, GLONASS, Galileo, SBAS

Tracking sensitivity up to -165 dB

Power supply type and voltage DC, 9 – 36 V

Average current consumption (12 V) 40 mA

Inputs/Outputs 2 discrete inputs (active “minus”)
2 discrete inputs (active “plus”)
2 analog inputs
2 discrete outputs

Discrete input voltage range from 0 to 40 V

Discrete output type open collector

Maximum load current of discrete output 0.5 A

Analog input voltage range 0 – 36 V

Digital interfaces CAN 11/29 bit
RS-232

Wireless interfaces BLE 4.0

Built-in battery 130 mAh

GSM and GPS antennas internal

Motion sensor accelerometer

Number of SIM cards 1

Black box 4 MB (or 120,000 records)

Operating temperature from -30 ° C to +60 ° C

Relative humidity 5 - 95% without condensation

Overall dimensions 96 x 77 x 14 mm

Net weight 75 g

Protocols and Integration (For Developers)

Supported data transfer protocolsWialon IPS
ConfigurationSMS commands, GPRS, FOTA
Full compatibility withWialon, Navixy, Cropio, GPS-Trace and other platforms

Cases

STRANGER IN ACTION: AGROHOLDING CASE by OVERSEER

13/07/2026

News

New liquid level sensor BI FLB SENSOR Bitrek

14/06/2026

News

Fuel control by injector pulses based on Bitrek equipment

13/07/2026

// FAQ

Questions and answers

Can I connect two pulse flowmeters at the same time?

Yes, BI 530 R TREK v3 supports simultaneous connection of two pulse flowmeters. Minimum pulse period – 1 ms.

Can I connect several fuel level sensors?

Yes, via RS-485 you can receive up to 10 level parameters from 10 sensors (1 parameter per sensor)

Is there NTP support?

Yes, so in the absence of a GPS signal the tracker will always transmit the correct date and time (important for gas stations and filling stations, where there is often no possibility of receiving a GPS signal)

Is it possible to remotely configure BLE sensors?

Yes, it is possible – using FOTA it is possible to remotely scan and configure BLE sensors as if the tracker was connected directly to your PC.

Is the fuel level sensor supported via RS-232?

No, it is not supported – such sensors are often outdated. We recommend considering the BI FLSensor v.8 sensor with RS-485 interface
