Feeding
9 - 36 V
Battery
1000 mAh
Interfaces
RS485
2x Analog In
3x Digital In
Digital Out
GNSS
GPS
GLONASS

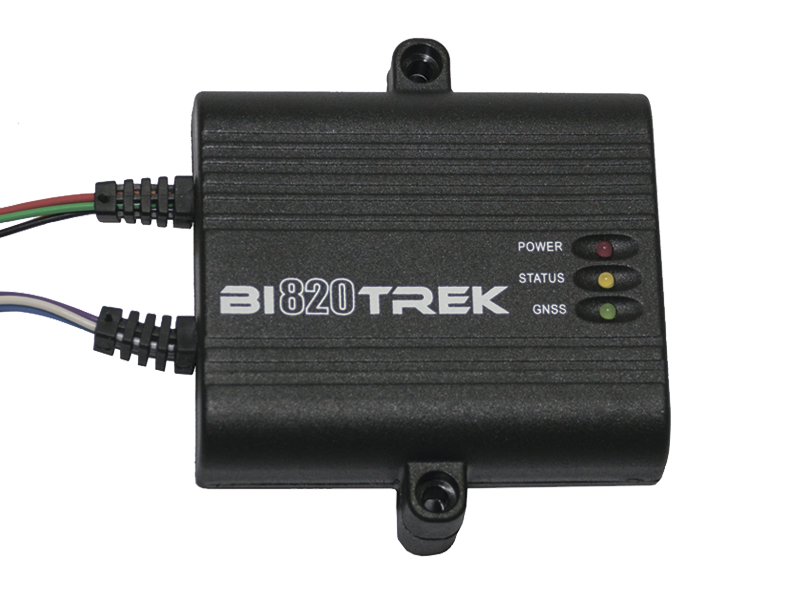

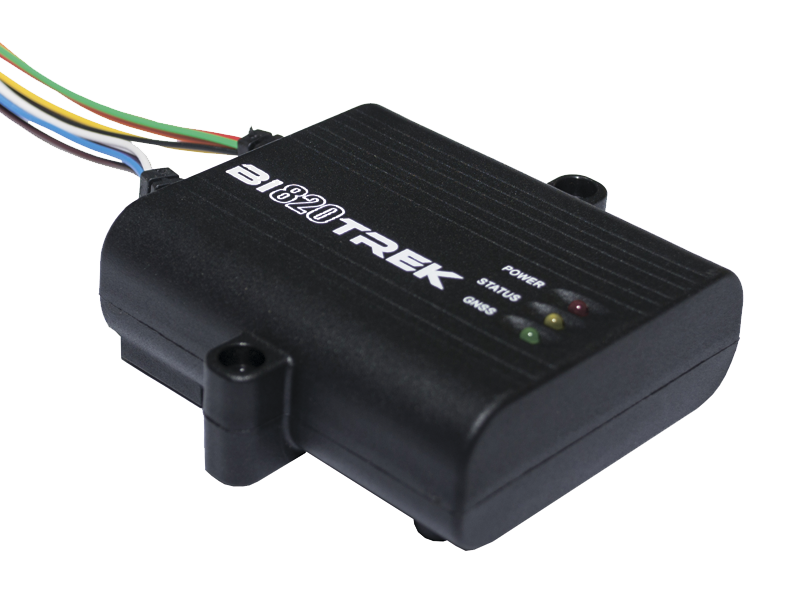

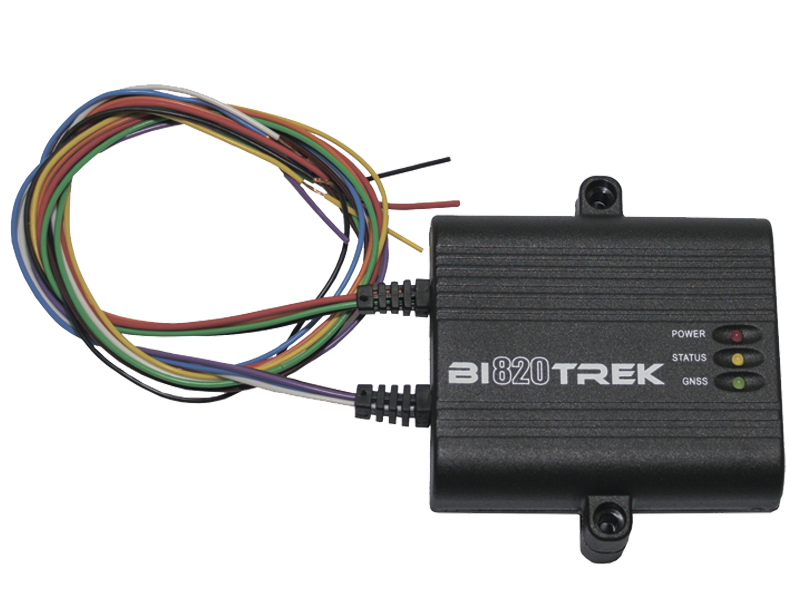

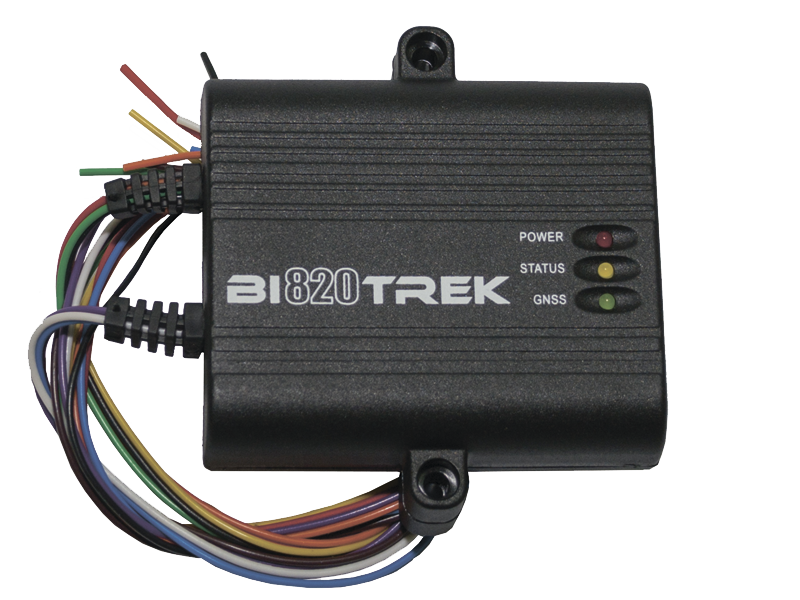

BI 820 TREK
GPS tracker for basic monitoring that provides accurate tracking, monitors ECO driving parameters and works with BLE sensors. A proven solution for basic monitoring of passenger vehicles.
Features
Key features
BI 820 TREK is a popular model for many years. It has a durable housing with built-in high-quality antennas. The device is designed for projects where the main emphasis is on precise fuel control, driver and trailer identification. It has the ability to connect a large number of additional sensors.
Main features
- High accuracy of determining coordinates and mileage
- Connection of fuel level sensors via RS-485
- Connection of RFID identifiers
- “Black box” mode with backup memory
Applying
// This model is ideal for
Logistics companies and freight transportation
Fuel control in a large fleet
Construction and special equipment
Monitoring of buses and passenger transport
Characteristics
Transmission standard
GSM 850/900/1800/1900 MHz
GSM frequency bands and power
GSM900: up to 2 W
GSM1800: up to 1 W
GSM1800: up to 1 W
Automatic range selection
GPRS class – 10
Type of navigation system
GPS, GLONASS
Sensitivity in tracking mode
up to -165 dB
Power supply type and voltage
constant, 9 – 36 V
Average current consumption (12 V)
60 mA
Maximum current (12 V)
350 mA
Inputs/Outputs
1 discrete input (active "plus")
2 discrete input (active "minus")
2 analog input
1 discrete output
2 discrete input (active "minus")
2 analog input
1 discrete output
Discrete input voltage range
from 0 to 40 V
Discrete output type
open collector
Maximum load current of the discrete output
0.5 A
Analog input voltage range
0 – 27 V
Wireless interfaces
RS-485 x 1 (Support RFID, Fuel Level Sensors)
Built-in battery
1000 mAh
Implementation of GSM and GPS antennas
internal
Motion sensor
accelerometer
Number of SIM cards
1
Black box
2 MB (or 65,000 records)
Operating temperature
from -30 ° C to +80 ° C
Relative humidity
5 - 95% non-condensing
Overall dimensions
90 x 95 x 34 mm
Net weight
175 g
Protocols and Integration (For Developers)
-
Supported Data Transfer ProtocolsWialon IPS, binary protocol
-
ConfigurationSMS commands, GPRS
-
Full compatibility withWialon, Navixy, Cropio, GPS-Trace and other platforms
// FAQ
Questions and answers
Can I connect multiple fuel level sensors?
Yes, up to 4 level sensors can be connected via RS-485 at the same time.
Is there NTP support?
Yes, so in the absence of a GPS signal, the tracker will transmit the correct date and time (important for gas stations and filling stations, where there is often no possibility of receiving a GPS signal).
Is it possible to remotely configure the tracker?
It is possible, but FOTA functions are not available for this model, so the configuration is performed using GPRS or SMS commands. For convenient remote configuration, we recommend the BI 530 C TREK v3 and BI 450 TREK models with FOTA support.
